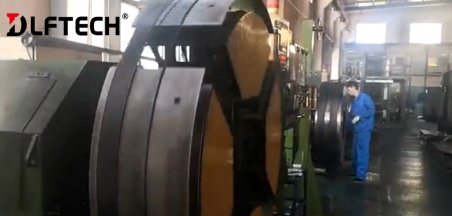

Rubber track steel cord ply winding line

Track steel cord winding machine/Track steel cord building machine/Steel cord winding machine/Rubber track steel cold ply winding line


Application

Rubber track steel cord ply winding line is mainly used for the winding and building of track steel cord belts. Through servo control, the expansion and contraction of the winding drum chuck, the wire arrangement mechanism, the expansion and contraction chuck and the pressing device are precisely controlled to be wound into a steel wire belt. The bead winding chuck has an adjustable diameter structure, and the entire set of winding chucks can be replaced with different diameters. One or more steel wire belts can be produced simultaneously in one cycle.


Feature

Constant speed, constant pressure and constant temperature steel wire coating achieves uniform coating without wire leakage.


Highlights

1. High automation: The entire line is controlled by PLC and driven by servo, fully automatic operation without manual intervention.

2. High quality: The wrapping steel wire belt is flat after coating. The width tolerance of the steel wire belt is ±2mm. The circumference tolerance of the bead is ±2mm.

3. High efficiency: Maximum linear speed of traction drum: V=70m/min(adjustable)

Inquire now
_20240103163915

Product Details

Rubber track steel cord ply winding line is mainly used for the winding and building of track steel cord belts.


TRWM-90 Technical parameters

No.Item
TRWBL-65-2TRWBL-90-3

TRWBL-90-4

1

Number of winding chuck

2

3

4

2


Winding chuck specification

1# Winding chuck range: Circumference: 6.3-7.4m;

Drum surface width: 200mm

2# Winding chuck range: Circumference: 7.4-8.6m; Drum surface width: 200mm

1# Winding chuck circumference: 2.65-3.25m; Drum surface width: 380mm;

2# Winding chuck circumference: 4.2-5.2m; Drum surface width: 380mm;

3# Winding chuck circumference: 5.2-6.2m; Drum surface width: 380mm;

1# Winding chuck range: Circumference: 1.6-2.4m;

Drum surface width: 200mm

2# Winding chuck range: Circumference: 2.4-3.2m;

Drum surface width: 200mm

3# Winding chuck range: Circumference: 3.2-4.5m;

Drum surface width: 200mm

4# Winding chuck range: Circumference: 4.5-6.3m;

Drum surface width: 200mm

3

Production efficiency

2 minutes and 30 seconds/pc(calculated based on circumference 4590mm and 23 turns of winding)

2 minutes and 45 seconds/pc (calculated based on 23 turns and circumference 4590mm)

2 minutes and 45 seconds/pc (calculated based on 23 turns and circumference 4590mm)

4

Extruder specification

XJW-65

XJW-90

XJW-90

5

Traction drum diameter

φ300

φ300

φ300

6

Max linear speed of traction drum

V = 60 M/min (adjustable)

V = 70 M/min (adjustable)

V = 60 M/min (adjustable)

7

Max storage capacity of steel wire

High 2000 × 27 groups

High 2000 × 28 groups

High 2000 × 27 groups

8

Steel wire belt width tolerance

±2mm

±2mm

±2mm

9

Bead circumference tolerance

±3mm

±3mm

±3mm
